Problem

My server keeps shutting down like once every week, and I had no idea why for the past 2 months. It was overheating… so putting it out into a vented place solved that issue.

But I wanted to be alerted of this problem before it even happens.

Solution

Setup a (Telegraf + InfluxDB + Grafana) stack.

InfluxDB - is a time-series database
Telegraf - is a binary running on the server/computer that will send temp data to InfluxDB
Grafana - will take data from InfluxDB and display it nicely (and also alert me when temp is too high)

InfluxDB Setup

Since I have a Proxmox Cluster, I will be using Proxmox Helper Scripts to set up an InfluxDB server.

InfluxDB can easily be setup with the following command:

bash -c "$(curl -fsSL https://raw.githubusercontent.com/community-scripts/ProxmoxVE/main/ct/influxdb.sh)"

Once installed, open the InfluxDB webpage via the URL given from the command output.

Next, we will need to create an organization, bucket and API token.

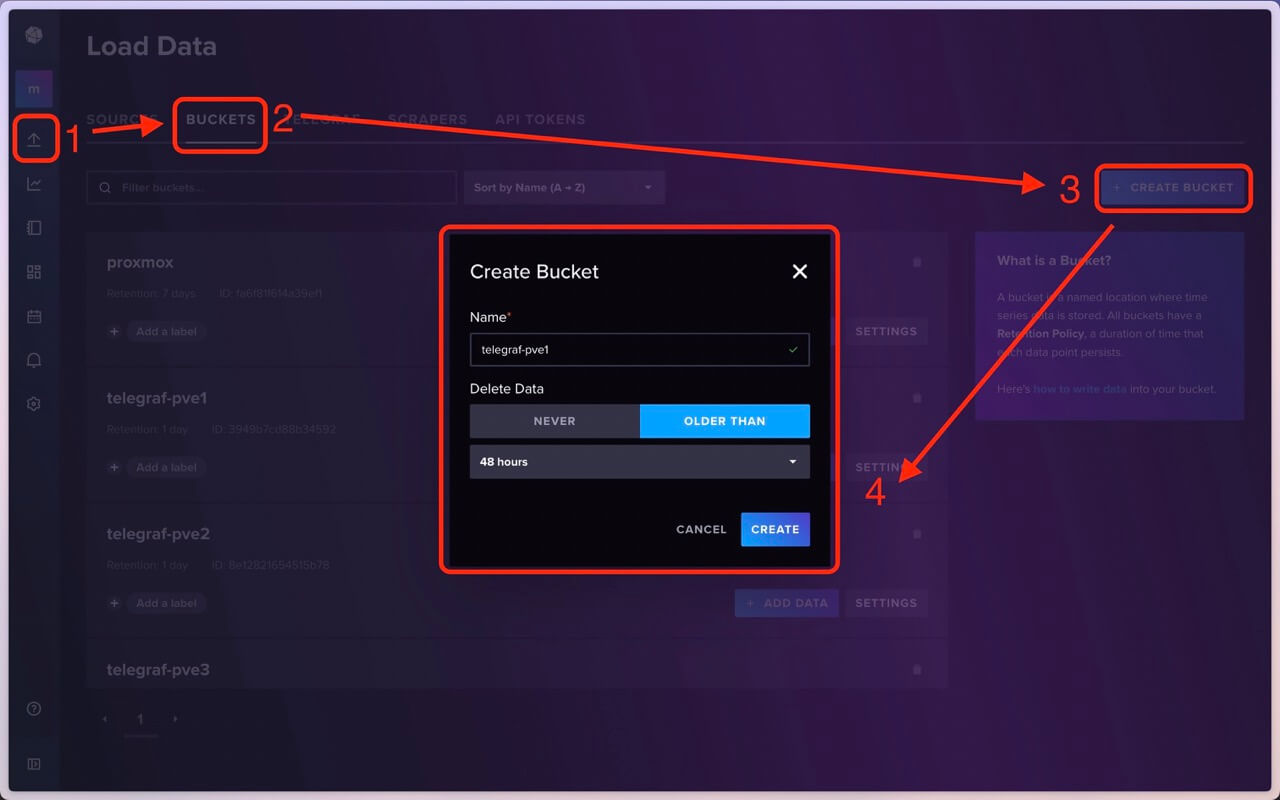

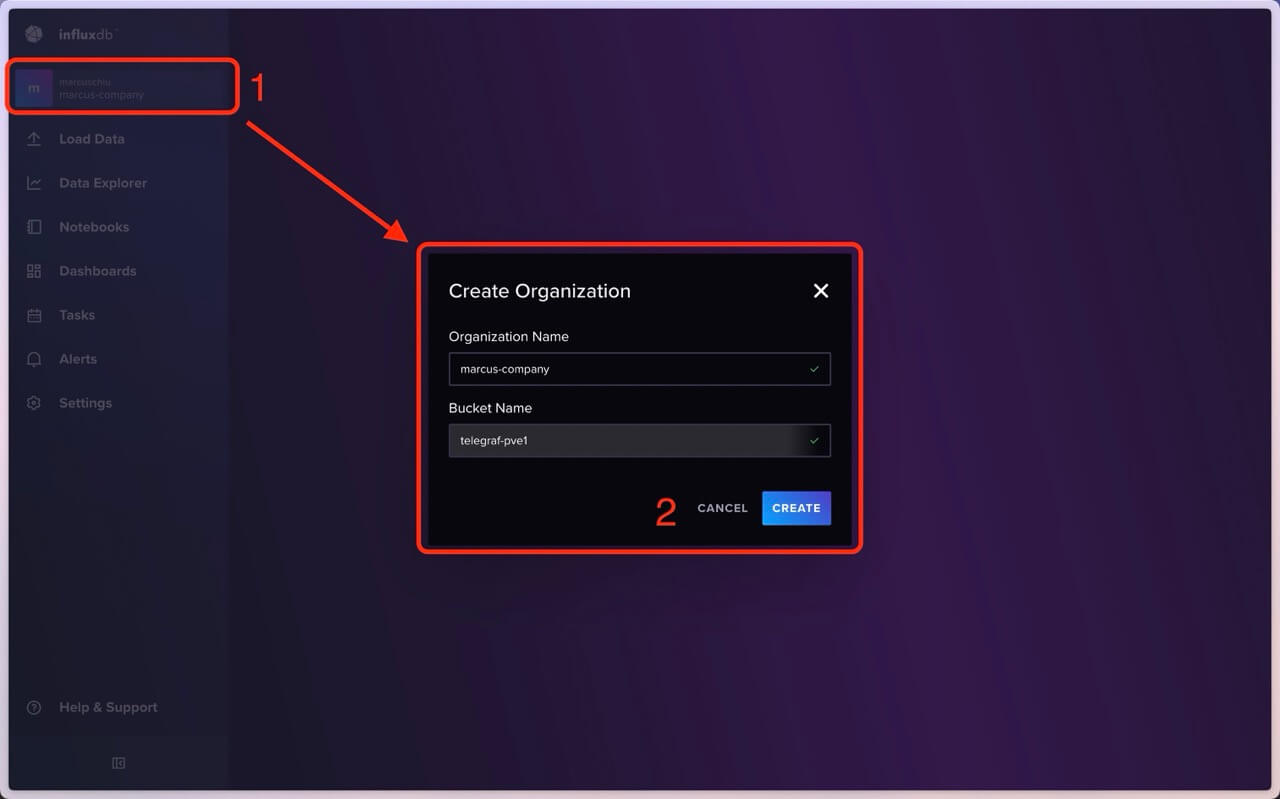

Create an organization & bucket:

alt

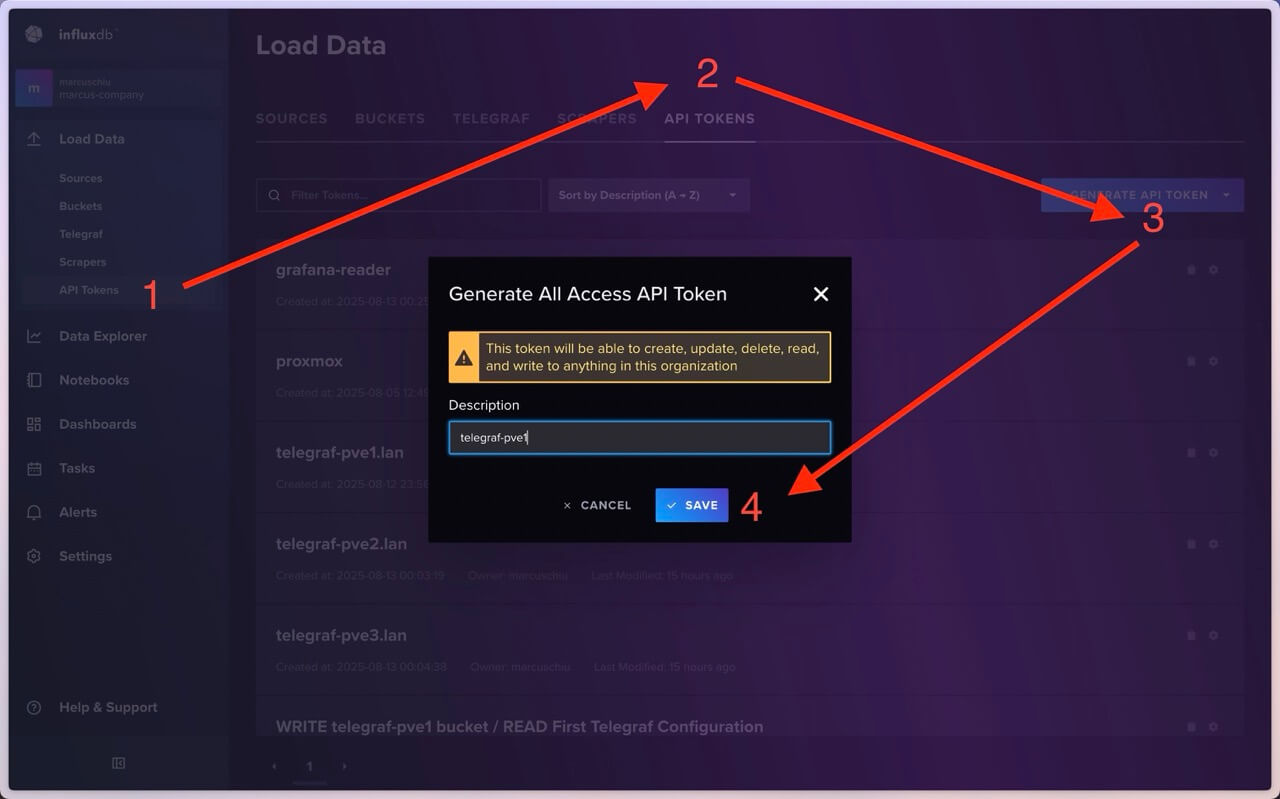

Create an API token. Once created copy token value for future use:

alt

Telegraf Setup

On your server/computer that you want to monitor:

Install lsb-release

sudo apt-get update
sudo apt-get install lsb-release

Install Telegraf

curl -fsSL https://repos.influxdata.com/influxdata-archive_compat.key | sudo gpg --dearmor -o /etc/apt/trusted.gpg.d/influxdata.gpg
echo "deb https://repos.influxdata.com/ubuntu $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/influxdata.list
sudo apt update
sudo apt install telegraf

Modify the telegraf.conf file:

vim /etc/telegraf/telegraf.conf

Find and uncomment the [[inputs.sensors]] section for temperature monitoring:

# Monitor sensors, requires lm-sensors package
[[inputs.sensors]]
## Remove numbers from field names.
## If true, a field name like 'temp1_input' will be changed to 'temp_input'.
# remove_numbers = true

## Timeout is the maximum amount of time that the sensors command can run.
# timeout = "5s"

We will also uncomment the [[inputs.net]] section for network monitoring.

Next, find and modify the InfluxDB configuration like below:

[[outputs.influxdb_v2]]
  ## The URLs of the InfluxDB cluster nodes.
  ##
  ## Multiple URLs can be specified for a single cluster, only ONE of the
  ## urls will be written to each interval.
  ##   ex: urls = ["https://us-west-2-1.aws.cloud2.influxdata.com"]
  urls = ["http://influxdb.lan"]

  ## Token for authentication.
  token = "INFLUX_TOKEN_VALUE_HERE"

  ## Organization is the name of the organization you wish to write to; must exist.
  organization = "marcus-company"

  ## Destination bucket to write into.
  bucket = "telegraf-pve1"

Save and exit.

In order, for [[inputs.sensors]] to work we will need to install lm-sensors.

sudo apt install lm-sensors

Start Telegraf server and verify:

sudo systemctl start telegraf
sudo systemctl enable telegraf
sudo systemctl status telegraf

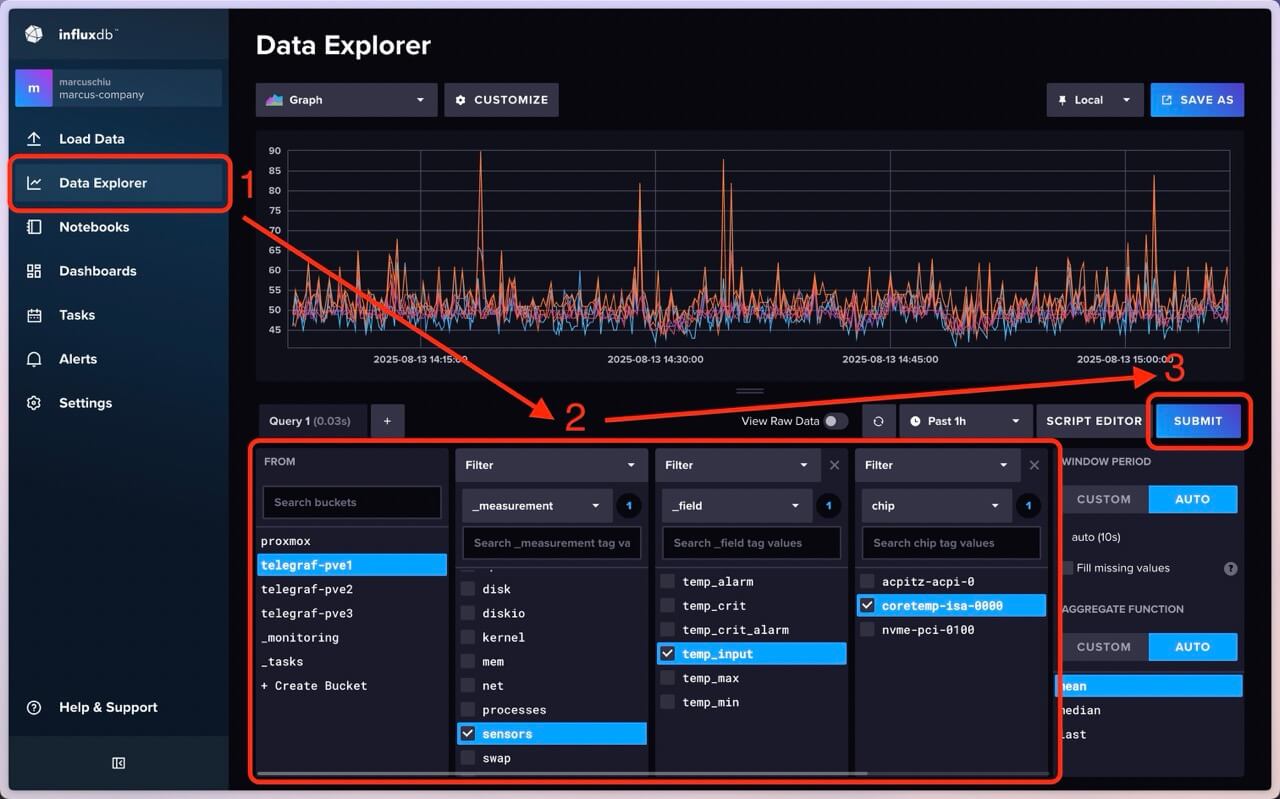

Go back to InfluxDB webpage and verify the bucket is now filled with data

alt

Grafana Setup

Since I have a Proxmox Cluster, I will be using Proxmox Helper Scripts to set up a Grafana server.

Grafana can easily be setup with the following command:

bash -c "$(curl -fsSL https://raw.githubusercontent.com/community-scripts/ProxmoxVE/main/ct/grafana.sh)"

Once installed, open the Grafana webpage via the URL given from the command output.

Grafana Setup InfluxDB DataSource

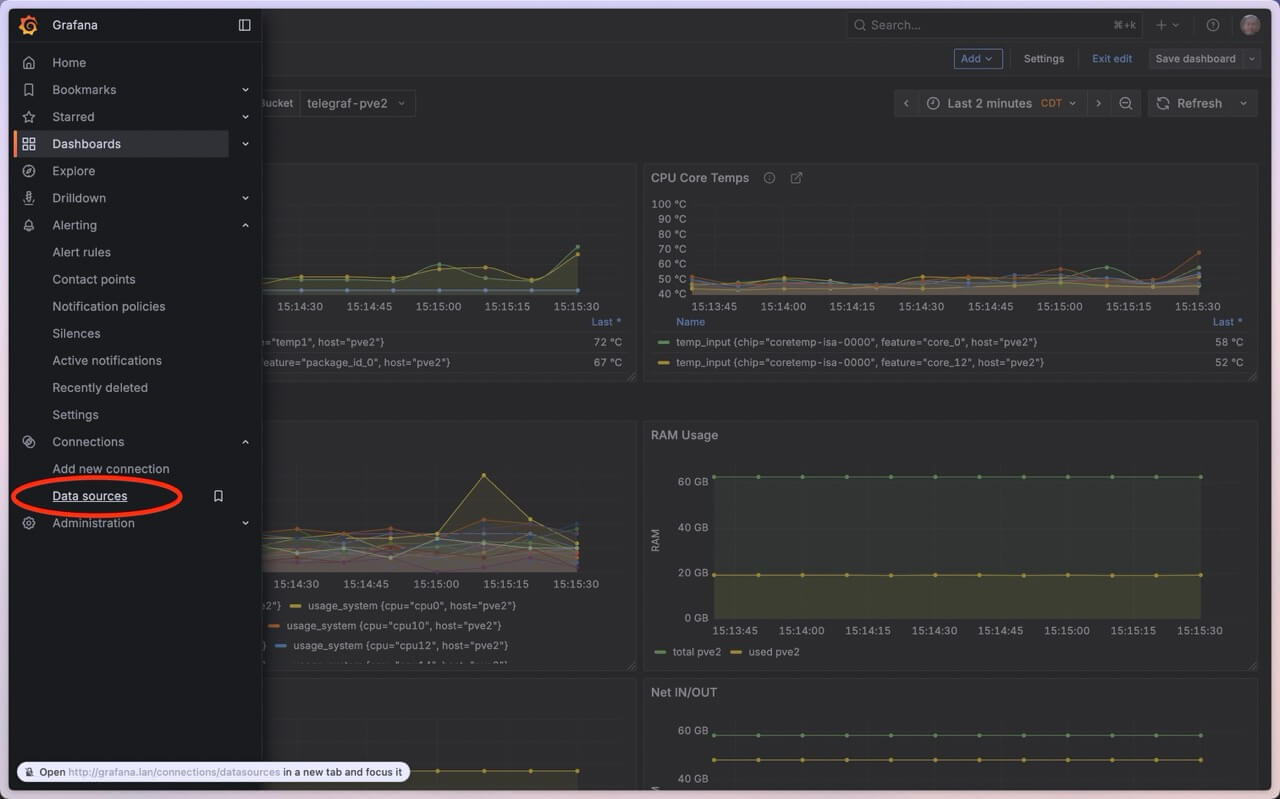

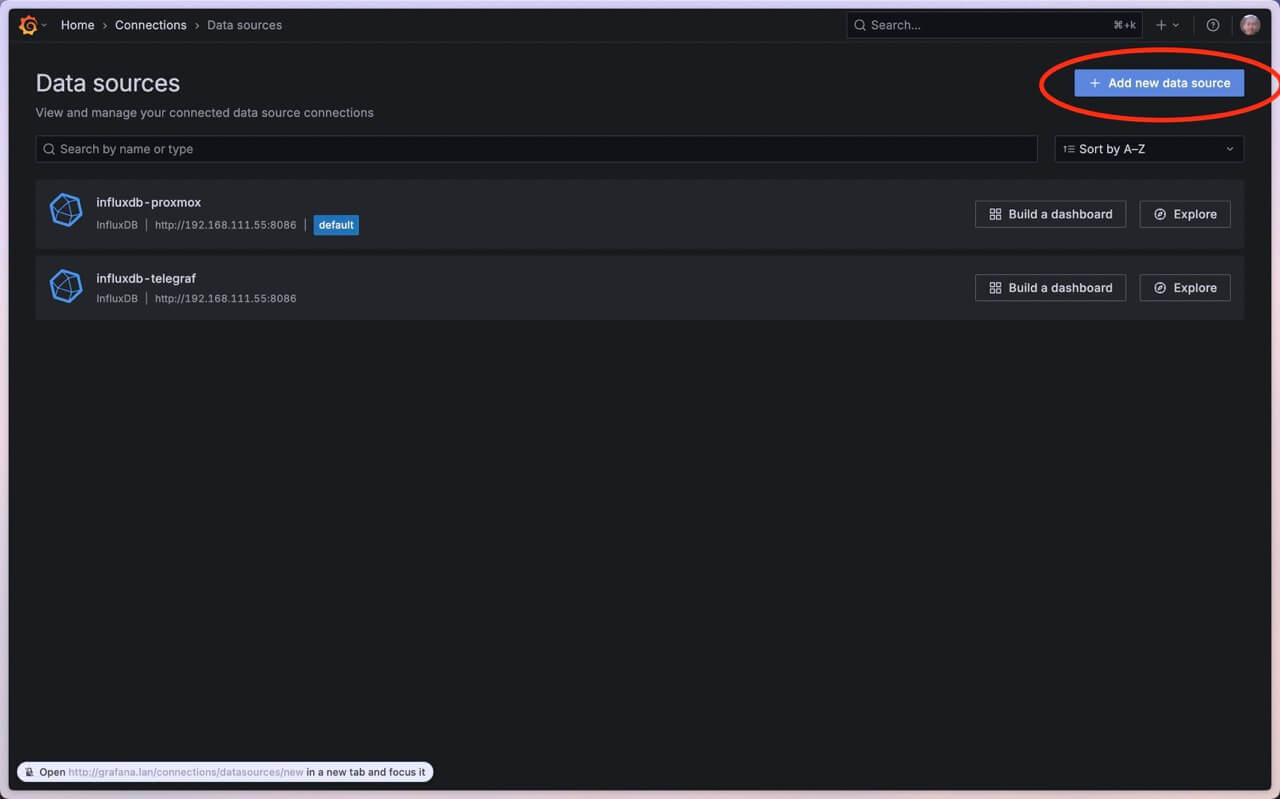

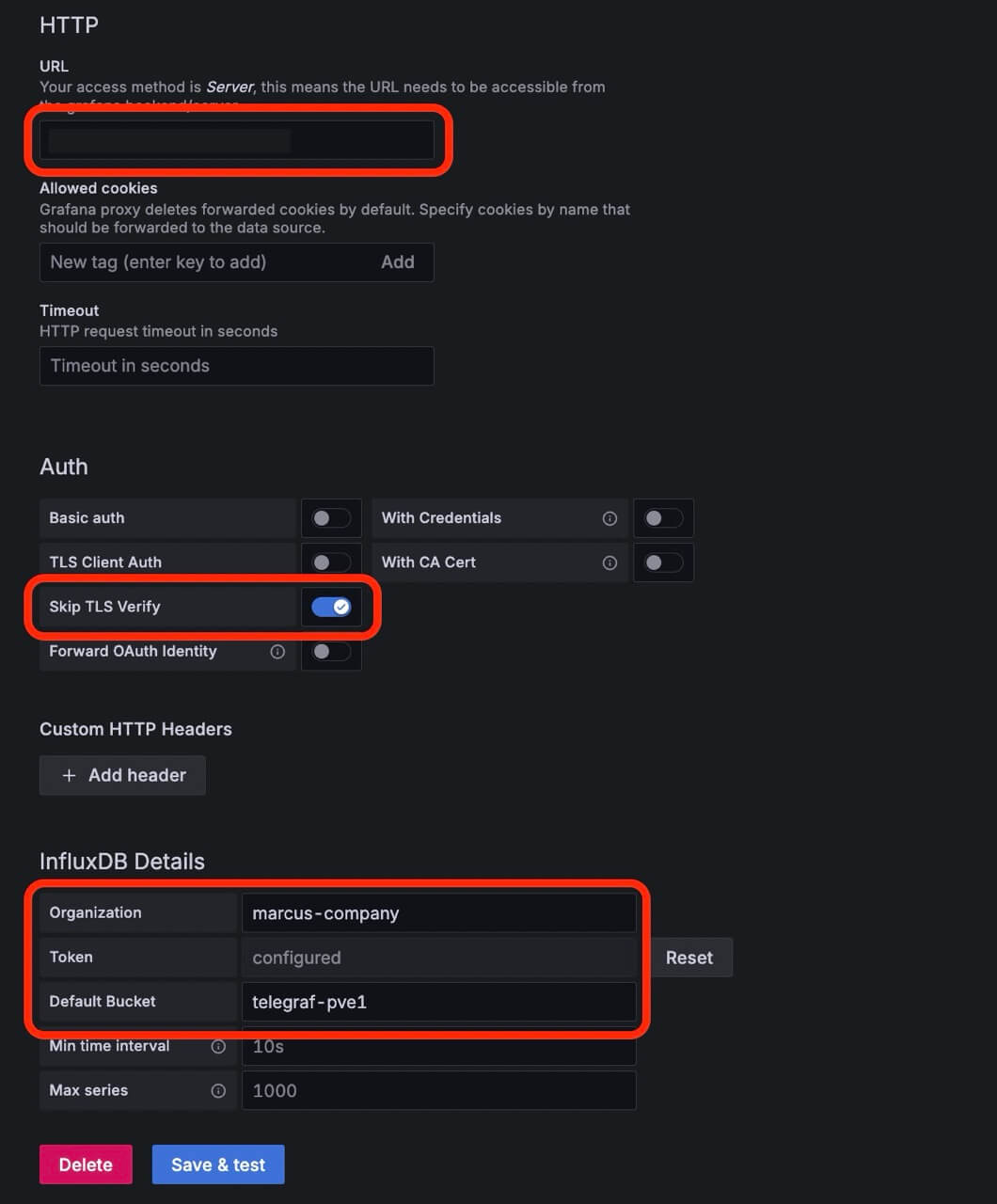

Create a connection to InfluxDB

alt

Click save and test.

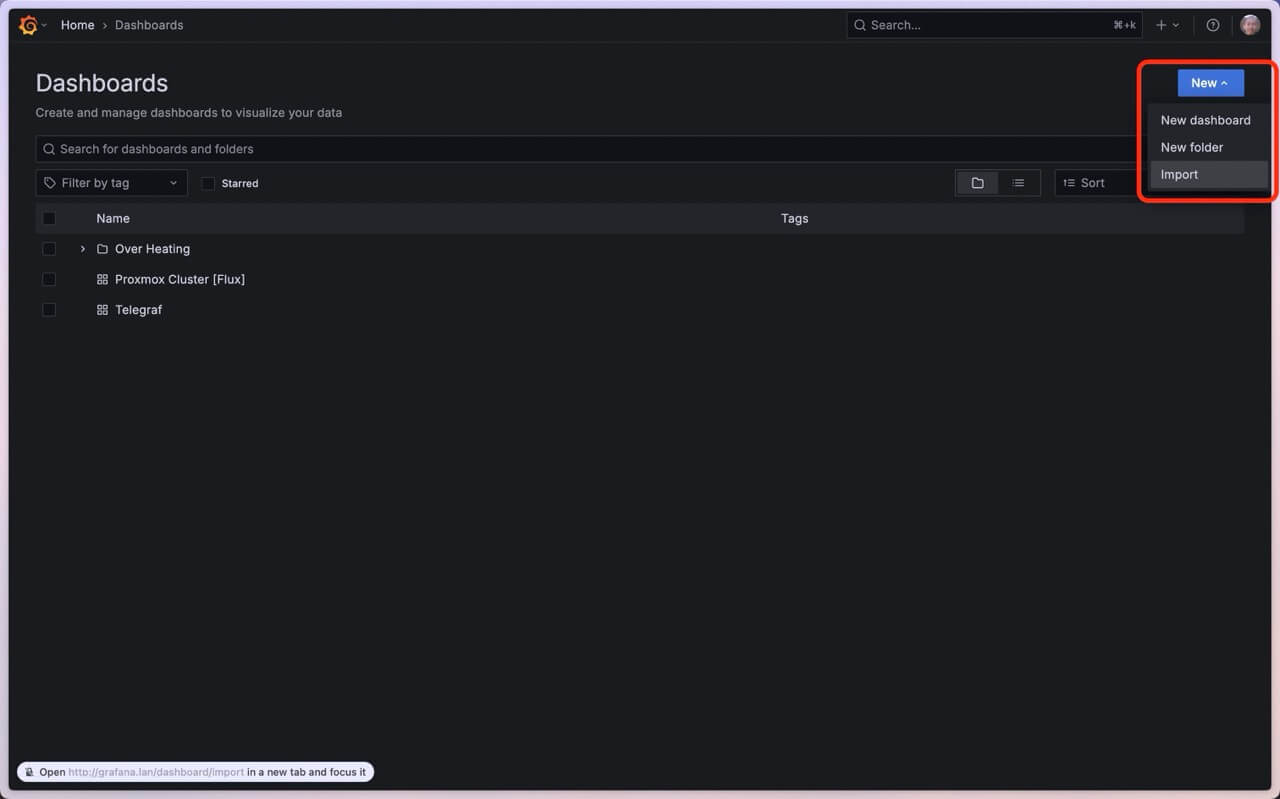

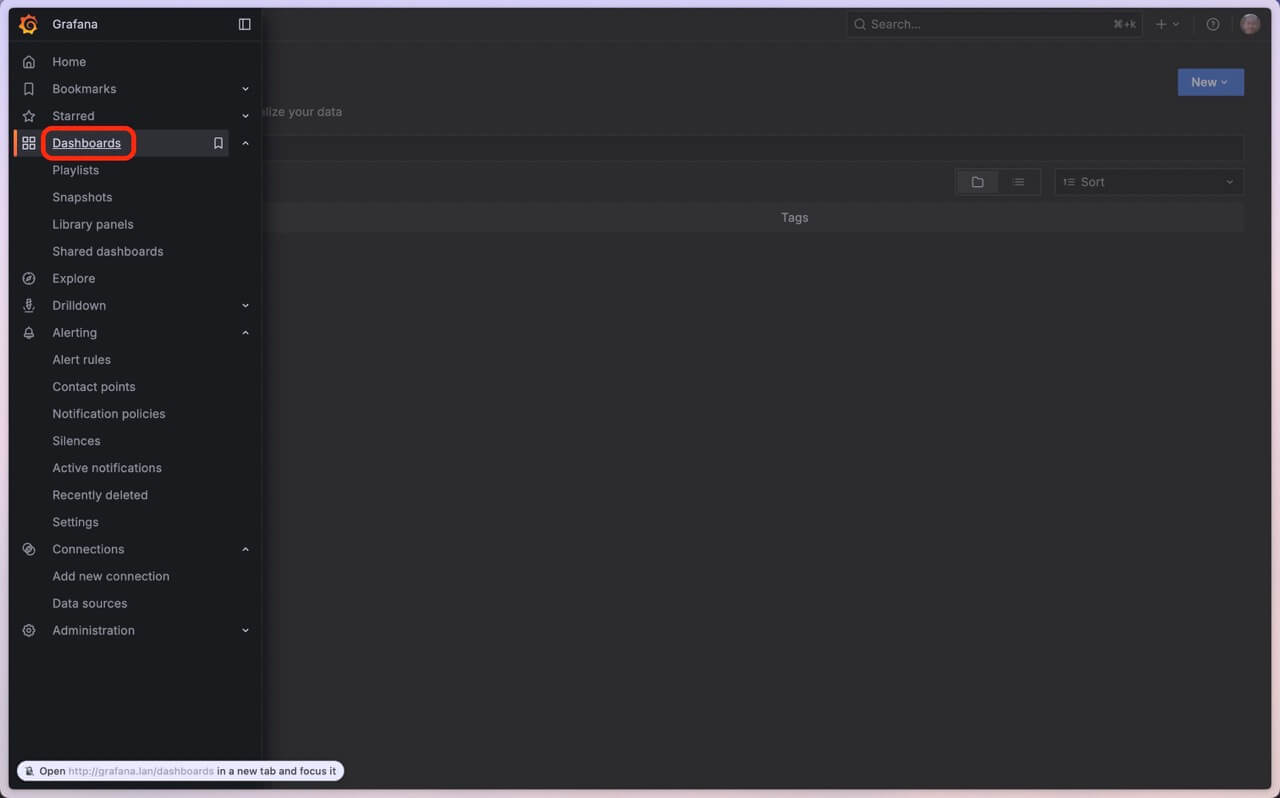

Grafana Setup Dashboard (Optional)

alt

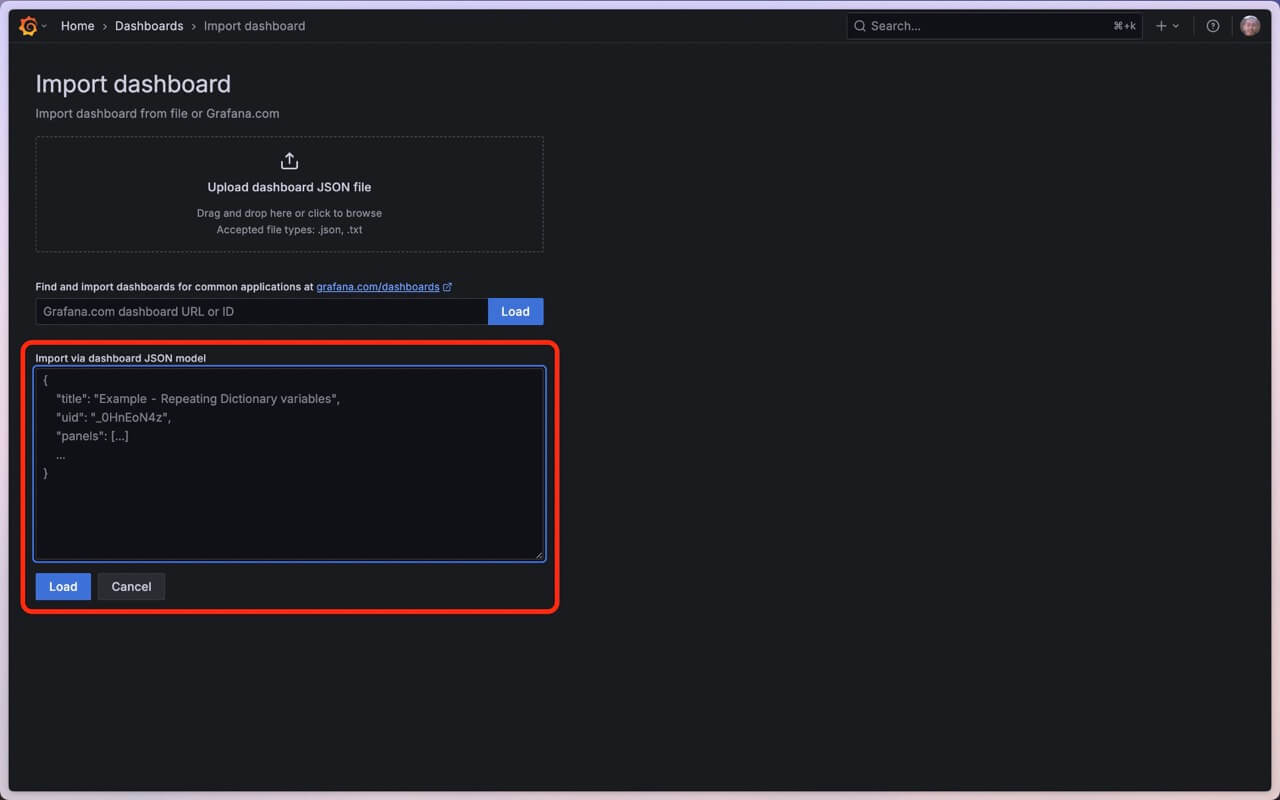

Paste in the following grafana-dashboard.json into the above input. Then load.

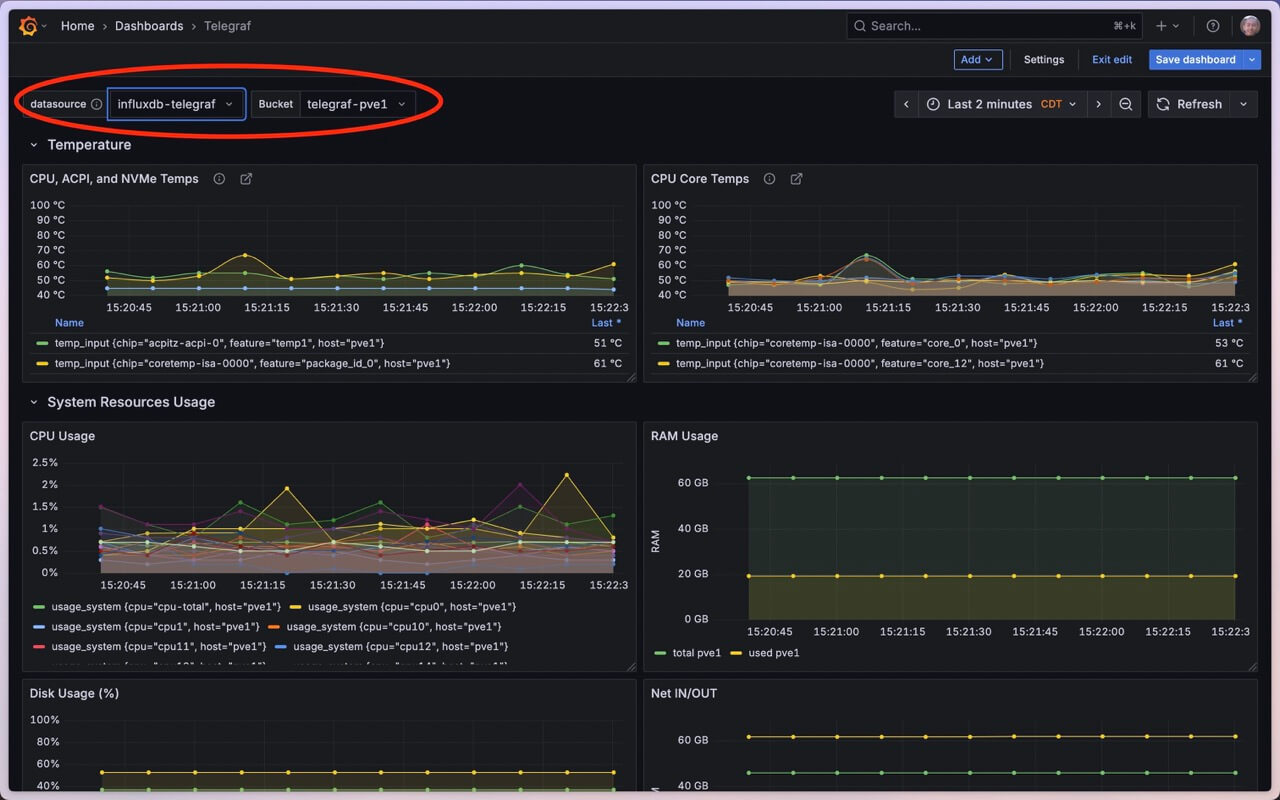

Modify the datasource and bucket variables.

alt

Grafana Setup Alerts

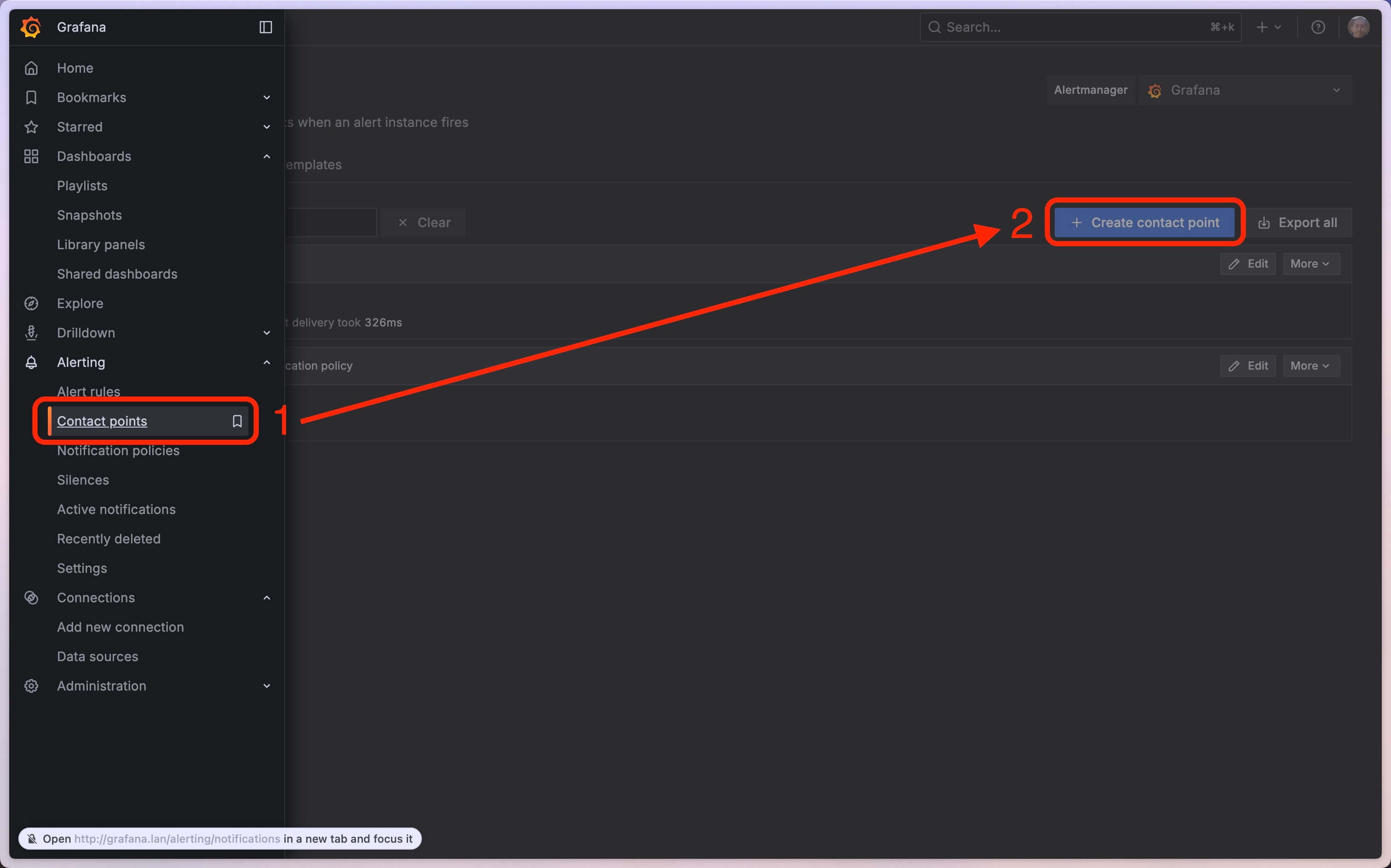

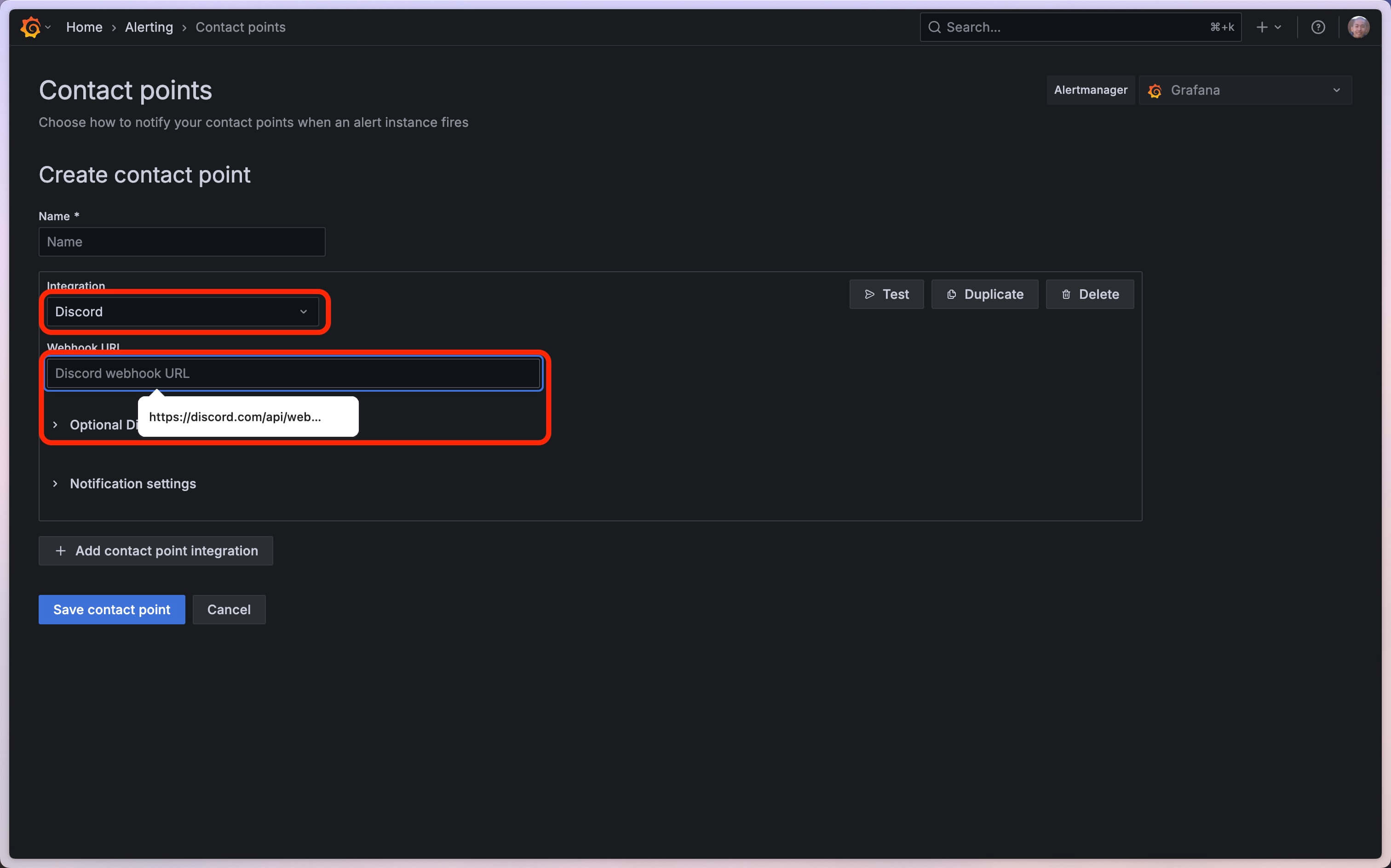

Let’s create a Discord contact point.

alt

Paste in the Discord webhook URL above. To create one, see here.

Click Test and verify a message is displayed in your Discord server.

Then click save.

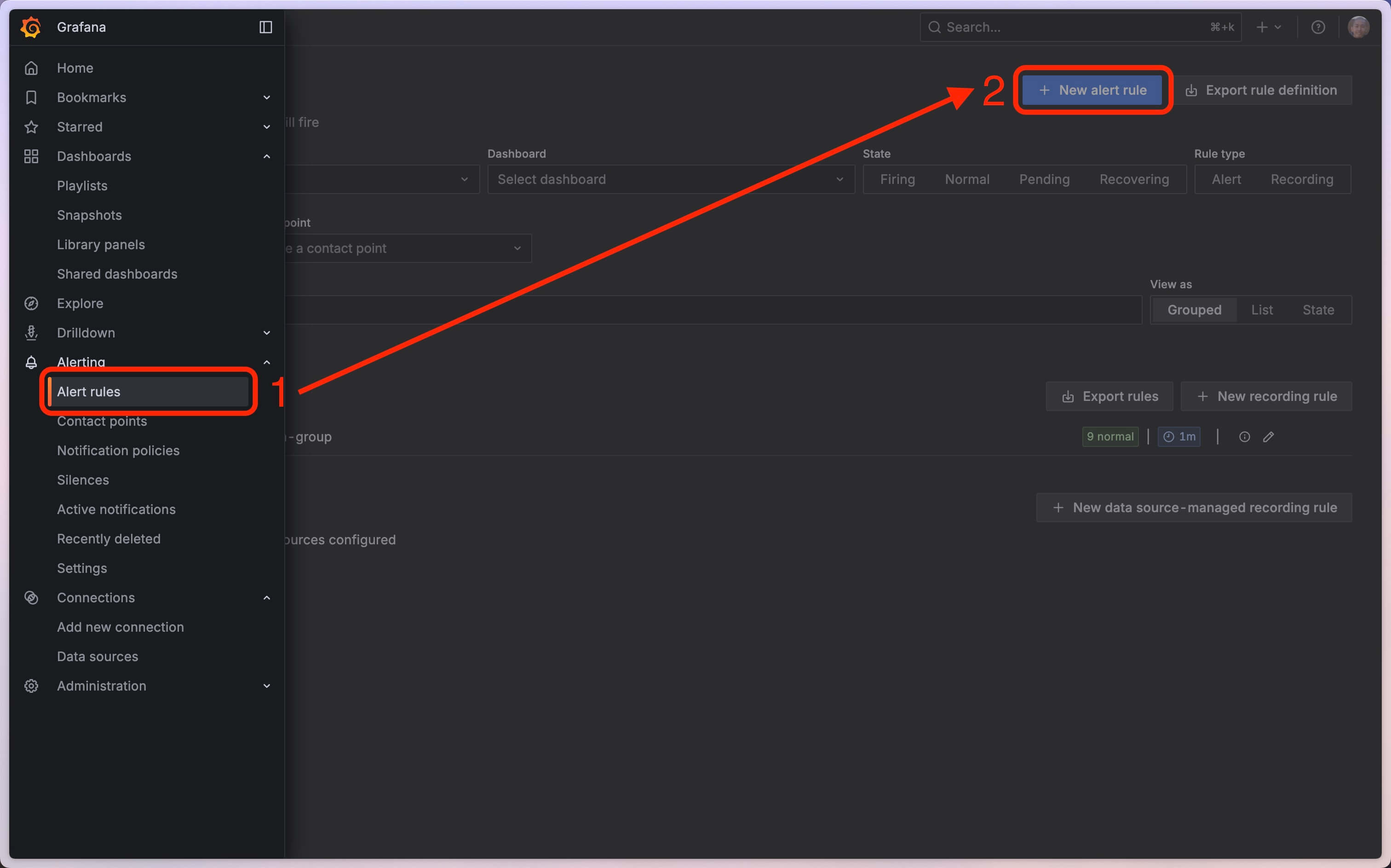

Next, let’s create an alert rule.

alt

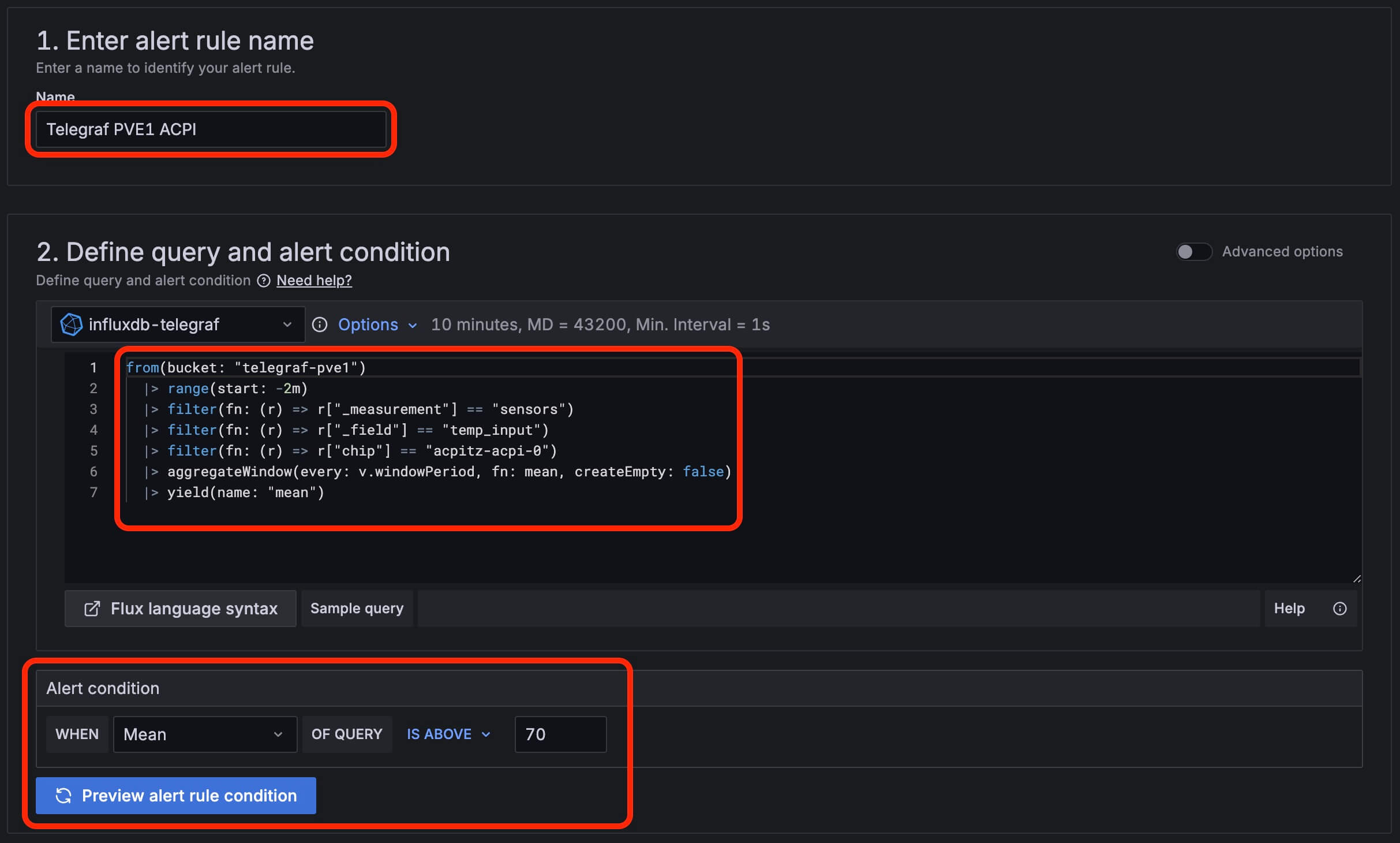

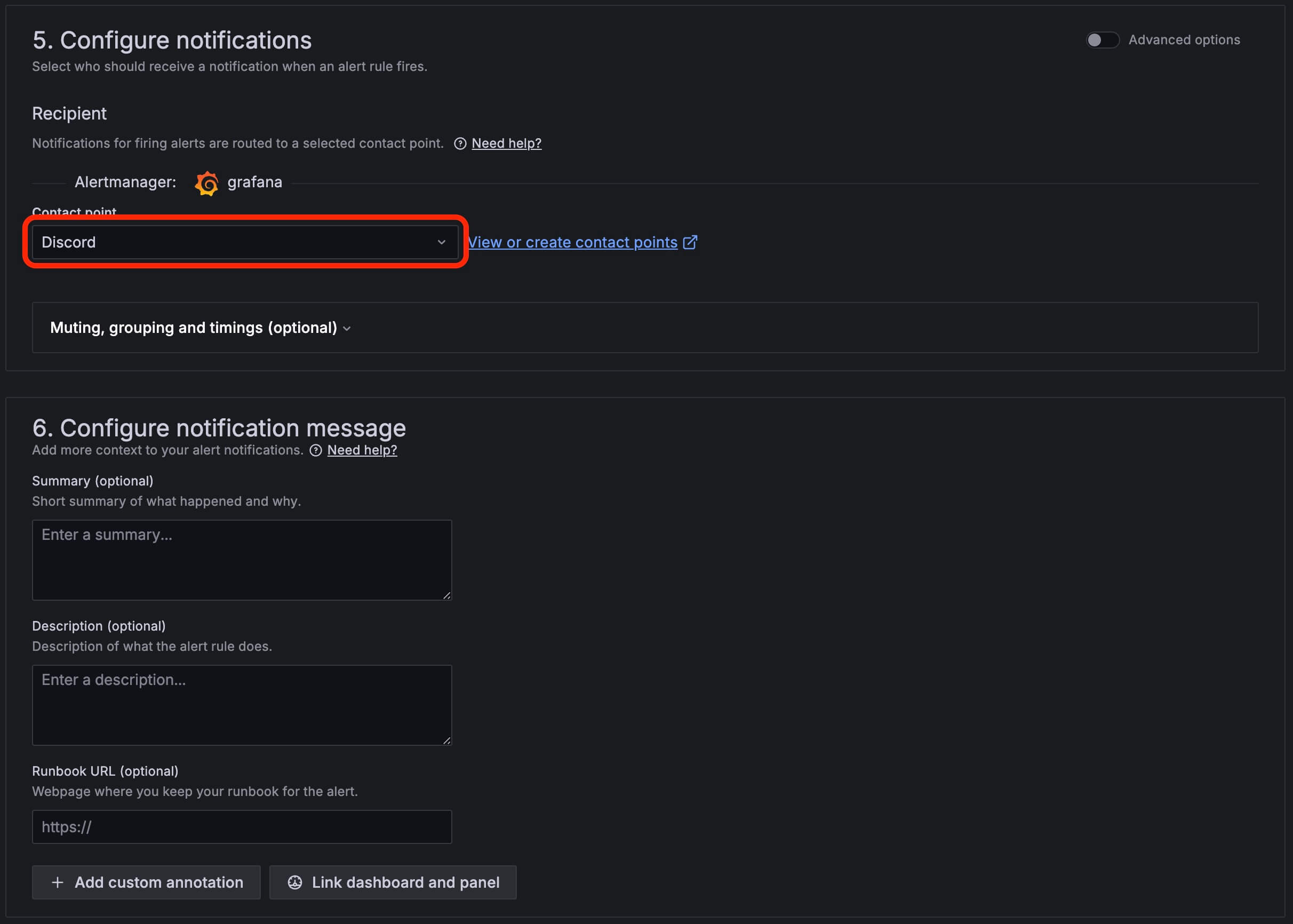

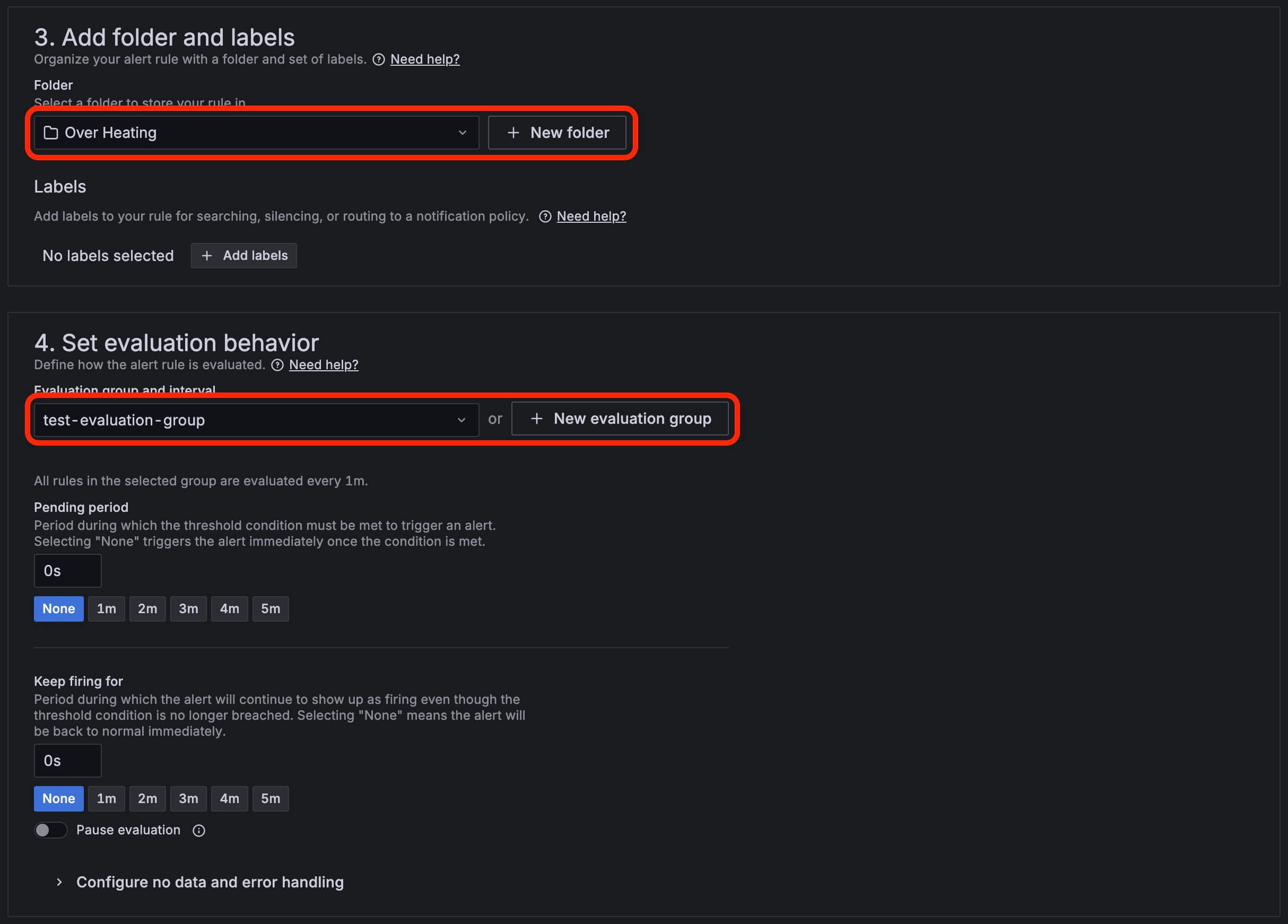

Enter the following values:

alt

You can click Preview alert rule condition.

alt
