Problem

A couple of days ago I built Tetris using canvas as the base visual. Something tickled my ADHD and thought if I could do it in Unicode text.

Solution

I’ve googled Unicode tetris emojis but found nothing. Then I’ve stumbled upon these Unicode characters/symbols?

⬛🟫🟧🟪🟥🟦🟨🟩

That’s exactly what I needed!

Because I’m a genius - the original code had the game logic and render logic separate. Thus, all I need to do is to rewrite the render logic using ⬛🟫🟧🟪🟥🟦🟨🟩.

The base board will be a <div> of <div>s like so:

<div className="text-board board">
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
    <div>⬛⬛⬛⬛⬛⬛⬛⬛⬛⬛</div>
</div>

Next, whenever we need to render gridState we will create an empty board of ⬛.

const newBoard = [];
for (let i = 0; i < 20; i++) {
    newBoard.push(["⬛","⬛","⬛","⬛","⬛","⬛","⬛","⬛","⬛","⬛"]);
}

Given a gridState (which is a 2D array of integers) we will update this newBoard:

function renderGridState(newBoard, gridState) {
    for (let y = 0; y < 20; y++) {
        for (let x = 0; x < 10; x++) {
            if (gridState[y][x] !== 0) {
                newBoard[y][x] = mapValue(gridState[y][x]);
            }
        }
    }
}

Once updated, we will render the DOM:

for (let y = 0; y < 20; y++) {
    divs[y].innerHTML = newBoard[y].join("");
}

This pretty much sums up building a text-based Tetris.

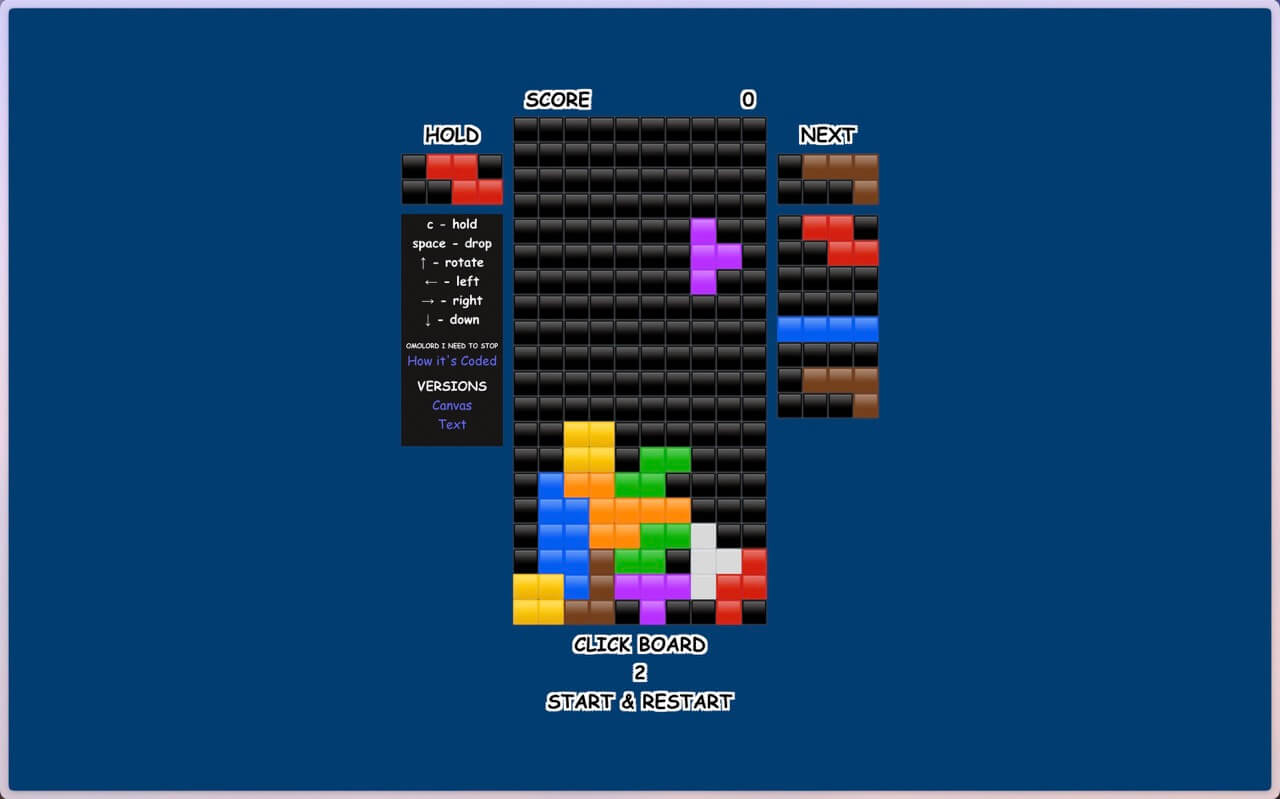

Here’s what it looks like:

tetris-text.marcuschiu.com
